Compression Spring Quote Request

Complete the details below and click "Submit your quote request" to send your specification to us. We will get back to you as soon as possible with a very competitive quote.

PLEASE NOTE: For load calculation at any Working Length use
LOAD = DEFLECTED LENGTH x RATE

Quantity of Springs required
	Quantity

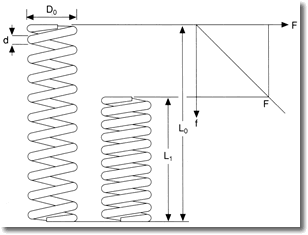

Spring Specifications
D0	Outside Diameter	mm
L0	Free Length	mm
d	Wire Diameter	mm
Nr	Total Coils	mm
	Rate	N/mm
	To support	F Kgs+ Kgs (L1)mm
Lmin	Min. Working Length	mm
	Style of ends	Open Ends Closed Ends Closed & Ground Ends
	Direction of Helix	Right Left Optional
	Material	Music Wire Stainless Steel wire Spring Steel
	Surface Finish	Oiled Self Galvanised Shot-peening Zinc Plating Phosphate
	Other Information
Your Details
	Contact Name*
	Company Name*
	Address*
	Telephone Number*
	Fax Number
	Email Address*
	Date required
